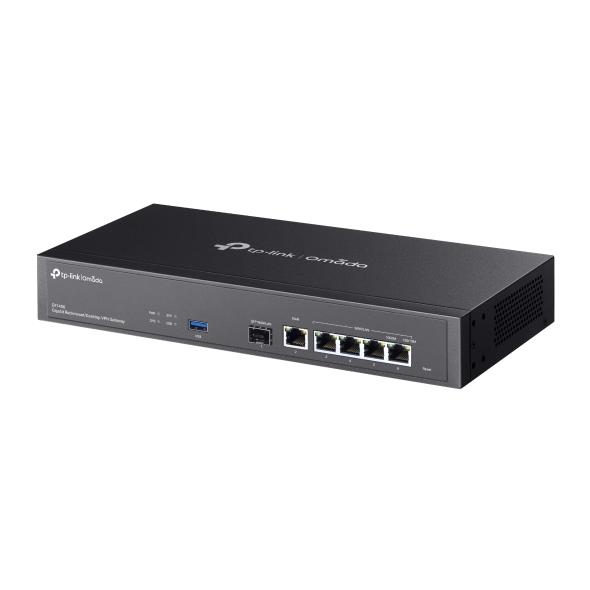

ER7406 Omada Gigabit Rackmount/Desktop VPN Gateway

Código: W10232N Más info del producto
$ 185.000
* Precio sin Impuestos Nacionales $ 167.421
  • 6 cuotas sin interés
Ingresá el Código Postal para ver tus opciones de Envío y Retiro:
Comprar Agregar al Carrito
ER7406 Nuevo
Puerta de Enlace VPN Omada Gigabit para Montaje en Rack/Escritorio
  • 1 puerto SFP WAN/LAN Gigabit
  • 5 puertos RJ45 Gigabit (1 WAN, 4 WAN/LAN)
  • 1 puerto USB 3.0 (Compatible con almacenamiento USB y respaldo LTE con un dongle LTE)
  • Equilibrio de Carga (Load Balancing) en hasta 5 puertos WAN que aumenta la tasa de utilización de la banda ancha multilínea
  • VPN de Alta Seguridad SSL / IPSec / GRE§ / WireGuard / PPTP / L2TP & OpenVPN
  • Gestión Centralizada en la Nube a través de la web o la aplicación Omada*
  • Protección DoS/DDoS, filtrado IP/MAC/URL, DPI, e IPS/IDS para una seguridad mejorada.
  • Montaje en Rack/Escritorio

  • SEGURIDAD
    Control de accesoSource/Destination IP Based Access Control
    Filtración• WEB Group Filtering§
    • URL Filtering
    • Web Security§
    Inspección ARP• Sending GARP Packets
    • ARP Scanning§
    • IP-MAC Binding
    Defensa de ataque• TCP/UDP/ICMP Flood Defense
    • Block TCP Scan (Stealth FIN/Xmas/Null)
    • Block Ping from WAN
    CARACTERÍSTICAS DE HARDWARE
    Estándares y Protocolos• IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
    • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP
    Interface• 1 Gigabit SFP WAN/LAN Port
    • 1 Gigabit WAN Port
    • 4 Gigabit LAN/WAN Ports
    • 1 USB 3.0 Port (supports USB LTE dongle and USB storage)
    Medios de red• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
    • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)
    • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
    Cantidad de ventiladoresFanless
    BotónReset Button
    Fuente de alimentación100-240VAC, 50/60Hz
    Flash128 MB NAND
    DRAM512 MB DDR4
    LEDPWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
    Dimensiones (An x Pr x Al)11.6 × 5.5 × 1.7 in (294 × 140 × 44 mm)
    Protección4 kV surge protection
    RecintoSteel
    Montaje• Desktop
    • Rackmountable
    Consumo máximo de energía• 7.5 W (with USB 3.0 connected)
    • 4.5 W (without USB 3.0 connected)
    DESEMPEÑO
    IPS ThroughputTCP: 229 Mbps;
    UDP: 188 Mbps
    DPI ThroughputTCP: 933 Mbps;
    UDP: 927 Mbps
    GRE• Unencrypted: 611.9 Mbps
    • Encrypted: 325.0 Mbps
    WireGuard VPN341.3 Mbps
    Sesión concurrente150,000
    New Sessions /Second5,300
    NAT (Static IP)945.3 Mbps / 940.5 Mbps
    NAT(DHCP)939.6 Mbps / 940.9 Mbps
    NAT(PPPoE)943.6 Mbps / 940.9 Mbps
    NAT (L2TP)880.1 Mbps / 859.0 Mbps
    NAT (PPTP)855.0 Mbps / 907.2 Mbps
    Rendimiento de VPN IPsec• ESP-SHA1-AES256: 617.1 Mbps
    • ESP-SHA256-AES256: 592.8 Mbps
    • ESP-SHA384-AES256: 592.4 Mbps
    • ESP-SHA512-AES256: 604.5 Mbps
    OpenVPN139.1 Mbps
    L2TP VPN Throughput• Unencrypted: 977.4 Mbps
    • Encrypted: 334.6 Mbps
    PPTP VPN Throughput• Unencrypted: 1064.1 Mbps
    • Encrypted: 206.8 Mbps
    SSL VPN Throughput131.6 Mbps
    66 Byte Packet forwarding rate1,453,489 pps / 1,453,488 pps
    1,518 Byte Packet forwarding rate81,279 pps / 81,275 pps
    FUNCIONES BÁSICAS
    Tipo de conexión WAN• Static IP
    • Dynamic IP
    • PPPoE(supports MRU Configuration)
    • PPTP
    • L2TP
    Clon de MACModify WAN/LAN MAC Address (LAN MAC Address can be modified only in Standalone Mode)
    DHCP• DHCP Server
    • DHCPv6 PD Server (only in Standalone Mode)
    • DHCP Options Customization
    • DHCP Address Reservation
    • Multi-IP Interfaces
    • Multi-Net DHCP
    IPv6StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode
    VLAN802.1Q VLAN
    IPTVIGMP v2/v3 Proxy, Custom Mode, Bridge Mode
    FUNCIONES AVANZADAS
    camino avanzado• Static Routing
    • Policy Routing
    • RIP (available in Standalone Mode)
    • OSPF (available in Standalone Mode)
    Control de Ancho de BandaIP-based Bandwidth Control
    Equilibrio de carga• Intelligent Load Balance
    • Application Optimized Routing
    • Link Backup (Timing, Failover)
    • Online Detection
    NAT• One-to-One NAT
    • Multi-Net NAT
    • Port Forwarding
    • Port Triggering§
    • NAT-DMZ
    • FTP/H.323/SIP/IPSec/PPTP ALG
    • UPnP
    Límite de sesiónIP-based Session Limit
    VPN
    GREv (Only in Standalone Mode)
    SSL VPN50 Tunnels
    IPsec VPN• 100 IPSec VPN Tunnels
    • LAN-to-LAN, Client-to-LAN
    • Main, Aggressive Negotiation Mode
    • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
    • IPsec Failover
    • IKE v1/v2
    • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
    • NAT Traversal (NAT-T)
    • Dead Peer Detection (DPD)
    • Perfect Forward Secrecy (PFS)
    PPTP VPN• PPTP VPN Server
    • PPTP VPN Client (10)**
    • 50 Tunnels
    • PPTP with MPPE Encryption
    L2TP VPN• L2TP VPN Server
    • L2TP VPN Client (10)**
    • 50 Tunnels
    • L2TP over IPSec
    VPN abierta• OpenVPN Server
    • OpenVPN Client (5)**
    • 55 OpenVPN Tunnels
    • "Certificate + Account" Mode
    • Full Mode
    WireGuard VPN• 20 Tunnels
    AUTENTICACIÓN
    Autenticación web• No Authentication
    • Simple Password*
    • Hotspot (Local User /Voucher*/ SMS/Radius*)
    • External Radius Server
    • External Portal Server*
    • LDAP§
    ADMINISTRACIÓN
    Aplicación OmadaYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
    Gestión centralizada• Omada Cloud-Based Controller
    • Omada Hardware Controller
    • Omada Software Controller
    Acceso a la nubeYes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
    ServicioDynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
    Mantenimiento• Web Management Interface
    • Remote Management
    • Export & Import Configuration
    • SNMP v1/v2c/v3
    • Diagnostics (Ping & Traceroute) (only in Standalone Mode)
    • NTP Synchronize (only in Standalone Mode)
    • Port Mirroring
    • CLI (only in Standalone Mode)
    • Syslog Support
    Aprovisionamiento sin intervenciónYes. Requires the use of Omada Cloud-Based Controller.
    Funciones de gestión• Automatic Device Discovery*
    • Batch Configuration*
    • Batch Firmware Upgrading*
    • Intelligent Network Monitoring*
    • Abnormal Event Warnings*
    • Unified Configuration*
    • Reboot Schedule*
    OTROS
    CertificaciónCE, FCC, RoHS
    contenidos del paquete• ER7406
    • Power Cord
    • Quick Installation Guide
    • Rackmount Kit
    Requisitos del sistema• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
    • MAC OS, NetWare, UNIX or Linux
    Ambiente• Operating Temperature: 0 °C to 50 °C (32 °F to 122°F)
    • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
    • Operating Humidity: 10% to 90% non-condensing
    • Storage Humidity: 5% to 90% non-condensing
